Electro Pneumatic Torque Wrench

An electric torque wrench is a planetary torque multiplier or a "gearbox" mated to a brushless electric motor.
At the end of the "gearbox" is a reaction device that is used to absorb the torque.
This allows the operator of the tool to use the electric torque wrench with very little effort.
Powered by the reliable Germany Metabo,bushless,220-240V standard,110V available Light and Compact Design, Suitable for a Variety of Applications
Accuracy is +/- 5%

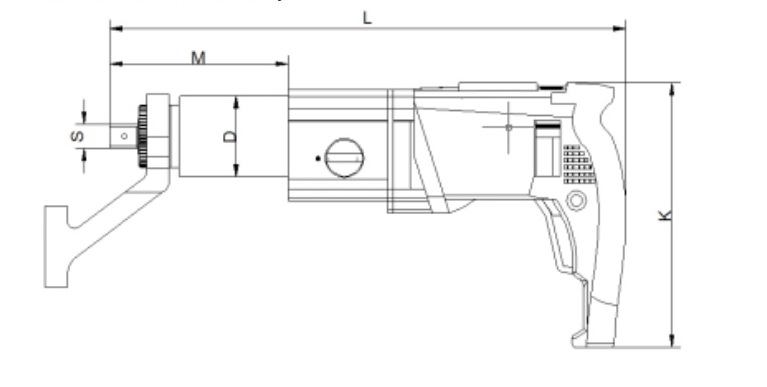

Electric Torque Wrench Straight Type

Model	ETW	ETW 8	ETW 16	ETW 28	ETW 40	ETW 60	ETW 80	ETW 100	ETW 120
Min Torque	Nm	100	200	400	700	1000	1200	2000	3000
Max Torque	Nm	800	1600	2800	4200	6000	8000	10000	12000
Drive	Inch	3/4"	1"	1"	1"	1.1/2"	1.1/2"	1.1/2"	1.1/2"
D	mm	65	74	79	88	88	120	128	128
L	mm	420	460	480	500	500	539	555	555
K	mm	205	205	205	205	205	205	205	205
M	mm	145	195	215	235	235	274	290	290
RPM	RPM	30	12.2	6.3	5.1	2.6	1.8	1.5	1.5
Weight	Kg	5	6.5	8.2	9.5	15	17	18.5	19

Electric Torque Wrench Straight Type

Model	ETWA	ETWA 8	ETWA 16	ETWA 28	ETWA 40	ETWA 60	ETWA 80	ETWA 100	ETWA 120
Min Torque	Nm	100	200	400	700	1000	1200	2000	3000
Max Torque	Nm	800	1600	2800	4200	6000	8000	10000	12000
Drive	Inch	3/4"	1"	1"	1"	1.1/2"	1.1/2"	1.1/2"	1.1/2"
D	mm	65	74	79	88	113	120	128	128
L	mm	320	320	320	320	320	320	320	320
H	mm	249	297	317	337	366	376	395	395
RPM	RPM	30	12.2	6.3	5.1	2.3	1.8	1.5	1.5
Weight	Kg	6.6	8.1	9.8	11.5	16.5	18.5	20	20

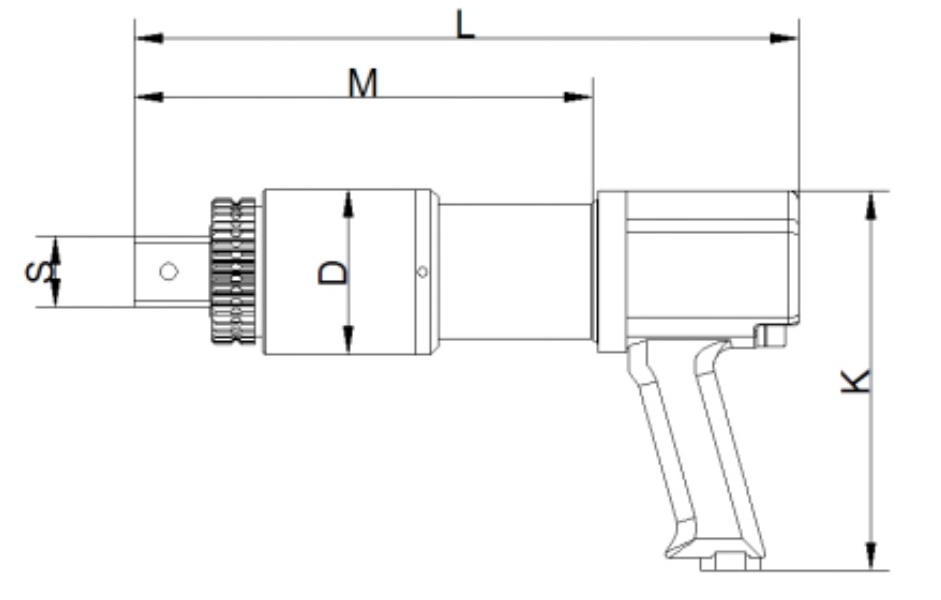

Pneumatic Torque Wrench Straight Type

Model	PTW	PTW 9	PTW 16	PTW 20	PTW 30	PTW 40	PTW 60	PTW 80	PTW 100	PTW 130
Min Torque	Nm	300	500	500	800	1200	1200	1600	3700	4000
Max Torque	Nm	950	1600	2000	3000	4300	6200	8000	10500	13500
Drive	Inch	3/4"	1"	1"	1"	1.1/2"	1.1/2"	1.1/2"	1.1/2"	1.1/2"
D	mm	74	78	78	88	88	113	120	128	128
M	mm	172	214	214	254	254	283	292	336	336
L	mm	302	344	344	384	384	413	422	466	466
K	mm	195	195	195	195	195	195	195	195	195
RPM	RPM	20.5	11.5	9	5.5	3.8	2.7	1.9	1.4	1.1
Weight	Kg	5.5	7	7	10	10	15	17	22	22
