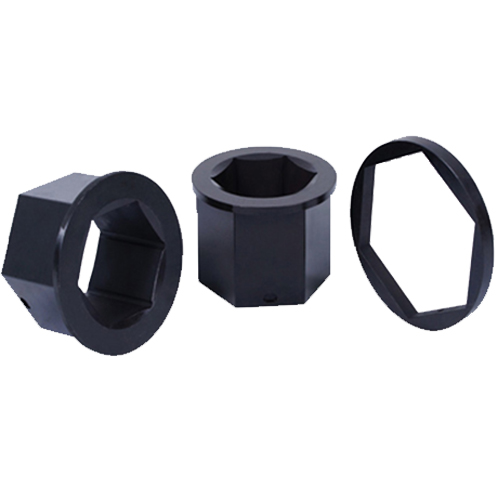

Hex Reducers

Hex Reducers are accessories used with Hexagonal Hydraulic Torque Wrenches
They help to reduce female hex size of ratchet/casette to nearest smallest hex size.
Hex Reducers help in reducing purchase cost of multiple ratchet/casette.
It is recommended to convert only nearest three sizes by specific Reducer.

Hex Reducers

Torque	Ratchet	Hex Reducer (HR) / Hex Reducer with Ring (HRR)						Length
Wrench	Size	Model	M/F	Type	M/F	Type	M/F	mm
HTW-2H	50mm	HR2-50-41	50/41	HR2-50-36	50/36	HR2-50-32	50/32	32
	46mm	HR2-46-36	46/36	HR2-46-32	46/32	HR2-46-30	46/30	32
	41mm	HR2-41-32	41/32	HR2-41-30	41/30	HR2-41-27	41/27	32
	36mm	HR2-36-30	36/30	HR2-36-27	36/27	-	-	32
	32mm	HR2-32-27	32/27	-	-	-	-	32
	30mm	-	-	-	-	-	-	-
	27mm	-	-	-	-	-	-	-

HTW-6H	65mm	HR6-65-55	65/55	HR6-65-50	65/50	HR6-65-46	65/46	42
	60mm	HR6-60-50	60/50	HR6-60-46	60/46	HR6-60-41	60/41	42
	55mm	HR6-55-46	55/46	HR6-55-41	55/41	HR6-55-36	55/36	42
	50mm	HR6-50-41	50/41	HR6-50-36	50/36	HR6-50-32	50/32	42
	46mm	HR6-46-36	46/36	HR6-46-32	46/32	HR6-46-30	46/30	42
	41mm	HR6-41-32	41/32	HR6-41-30	41/30	HR6-41-27	41/27	42
	36mm	HR6-36-30	36/30	HR6-36-27	36/27	-	-	42
	32mm	HR6-32-27	32/27	-	-	-	-	42
	30mm	-	-	-	-	-	-	-
	27mm	-	-	-	-	-	-	-

HTW-11H	90mm	HR11-90-80	90/80	HR11-90-75	90/75	HR11-90-70	90/70	53
	85mm	HR11-85-75	85/75	HR11-85-70	85/70	HR11-85-65	85/65	53
	80mm	HR11-80-70	80/70	HR11-80-65	80/65	HR11-80-60	80/60	53
	75mm	HR11-75-65	75/65	HR11-75-60	75/60	HR11-75-55	75/55	53
	70mm	HR11-70-60	70/60	HR11-70-55	70/55	HR11-70-50	70/50	53
	65mm	HR11-65-55	65/55	HR11-65-50	65/50	HR11-65-45	65/45	53
	60mm	HR11-60-50	60/50	HR11-60-46	60/46	-	-	53
	55mm	HR11-55-46	55/46	HR11-55-41	55/41	-	-	53
	50mm	-	-	-	-	-	-	-

HTW-18H	115mm	HR18-115-105	115/105	HR18-115-100	115/100	HR18-115-95	115/95	64
	110mm	HR18-110-100	110/100	HR18-110-95	110/95	HR18-110-90	110/90	64
	105mm	HR18-105-95	105/95	HR18-105-90	105/90	HR18-105-85	105/85	64
	100mm	HR18-100-90	100/90	HR18-100-85	100/85	HR18-100-80	100/80	64
	95mm	HR18-95-85	95/85	HR18-95-80	95/80	HR18-95-75	95/75	64
	90mm	HR18-90-80	90/80	HR18-90-75	90/75	HR18-90-70	90/70	64
	85mm	HR18-85-75	85/75	HR18-85-70	85/70	HR18-85-65	85/65	64
	80mm	HR18-80-70	80/70	HR18-80-65	80/65	-	-	64
	75mm	HR18-75-65	75/65	-	-	-	-	64
	70mm	-	-	-	-	-	-	-
	65mm	-	-	-	-	-	-	-

HTW-45H	155mm	HR45-155-145	155/145	HR45-155-130	155/130	HR45-155-120	155/120	85
	145mm	HR45-145-145	145/130	HR45-145-120	145/120	HR45-145-115	145/115	85
	130mm	HR45-130-120	130/120	HR45-130-115	130/115	HR45-130-110	130/110	85
	120mm	HR45-120-110	120/110	HR45-120-105	120/105	HR45-120-100	120/100	85
	115mm	HR45-115-105	115/105	HR45-115-100	115/100	HR45-115-95	115/95	85
	110mm	HR45-110-100	110/100	HR45-110-95	110/95	HR45-110-90	110/90	85
	105mm	HR45-105-95	105/95	HR45-105-90	105/90	HR45-105-80	100/80	85
	100mm	HR45-100-90	100/90	HR45-100-85	100/85	HR45-100-80	100/80	85
	95mm	HR45-95-145	95/85	HR45-95-80	95/80	-	-	85
	90mm	HR45-90-80	90/80	-	-	-	-	85
	85mm	-	-	-	-	-	-	-
	80mm	-	-	-	-	-	-	-
