Torque Multiplier
IET Torque Multiplier are used for application where torque required cannot be achieved by Manual Torque Wrench and end user do not want to invest in Hydraulic system
It is product which is alternative to Manual and Hydraulic Torque Wrenches.
Input torque can easily multiplied by 5 to 25 times using IET Multipliers.
They have been developed and designed to meet high torque requirements keeping in view space restrictions.
The Gear units are designed for multiplication of input torque by Sun and Planet arrangement.

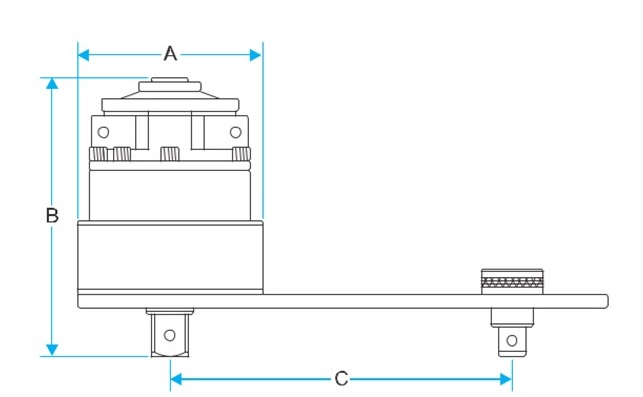

| Model No | Torque | Multiplication | Input | Output | Major (A) | Height (B) | Weight | |
|---|---|---|---|---|---|---|---|---|
| Lb Ft | Nm | Factor | Drive | Drive | dia mm | mm | Kg | |
| TM-1 | 1250 | 1700 | 5 | 1/2 | 3/4 | 115 | 87 | 4.5 |
| TM-2 | 1250 | 1700 | 5 | 3/4 | 1 | 115 | 90 | 5 |
| TM-2/2.5 | 1250 | 1700 | 25 | 1/2 | 1 | 115 | 120 | 7 |
| TM-5 | 2000 | 2700 | 5 | 3/4 | 1 | 136 | 91 | 11 |
| TM-5/25 | 2000 | 2700 | 25 | 1/2 | 1 | 136 | 120 | 11 |
| TM-6 | 2500 | 3400 | 5 | 3/4 | 1.1/2 | 136 | 91 | 9.5 |
| TM-6/25 | 2500 | 3400 | 25 | 1/2 | 1.1/2 | 136 | 120 | 12 |
| TM-7 | 4500 | 6000 | 5 | 3/4 | 1.1/2 | 168 | 115 | 18 |
| TM-7/25 | 4500 | 6000 | 25 | 1/2 | 1.1/2 | 168 | 190 | 22 |
| TM-9/25 | 7000 | 9500 | 25 | 3/4 | 2.1/2 | 220 | 225 | 33 |
| TM-11/25 | 11060 | 15000 | 25 | 3/4 | 2.1/2 | 220 | 280 | 52 |
| Model No | Torque | Multiplication | Input | Output | Dia | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| Lb Ft | Nm | Factor | Drive | Drive | mm | mm | Kg | |
| TMC-15 | 1000 | 1350 | 4.5 | 1/2" | 1" | 80 | 175 | 3 |
| TMC-25 | 1300 | 1650 | 12 | 1/2" | 1" | 80 | 240 | 5 |
| TMC-35 | 2100 | 2800 | 15 | 1/2" | 1" | 80 | 245 | 5 |
| TMC-40 | 2350 | 3200 | 15 | 3/4" | 1.1/2" | 95 | 285 | 6 |
| TMC-65 | 3660 | 4900 | 21 | 3/4" | 1.1/2" | 115 | 300 | 9 |
| TMC-90 | 5100 | 6800 | 40 | 3/4" | 1.1/2" | 170 | 310 | 22 |
