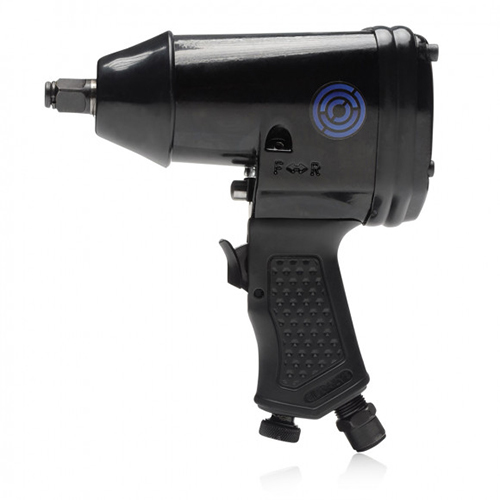

Pneumatic Impact Wrench
Pneumatic Impact Wrenches are used for rapid closing and opening of Nuts
They are used for Torque between 100-3000 Nm.
IET Pnumatic Impact Wrench comes with Aluminium or Composite body
There are varients like Piston and Anvil as well as Twin hammer and Supper Hammer.
Composite body makes Pneumatic Impact Wrench Lighter in weight.
Supper hammer is recommended for heavy industrial use.
| Model No | PIW 381 | PIW 251 | PIW 252 | PIW253 | PIW191 | PIW192 | PIW121 | PIW122 |
|---|---|---|---|---|---|---|---|---|
| Square Drive | 1.1/2" | 1" | 1" | 1" | 3/4" | 3/4" | 1/2" | 1/2" |
| Type | Anvil | Anvil | Piston | Piston | Piston | Piston | Piston | Piston |
| Bolt Capacity | 53mm | 45mm | 41mm | 45mm | 32mm | 32mm | 16mm | 16mm |
| Air Inlet | 1/2" | 1/2" | 1/2" | 1/2" | 3/8" | 3/8" | 1/4" | 1/4" |
| Hose Size | 13mm | 13mm | 13mm | 13mm | 10mm | 10mm | 10mm | 10mm |
| Air Pressure | 6.3-8 bar | 6.3-8 bar | 6.3-8 bar | 6.3-8 bar | 6.3 bar | 6.3 bar | 6.3 bar | 6.3 bar |
| Max Torque | 4070 Nm | 2985 Nm | 2714 Nm | 2443 Nm | 1493 Nm | 1900 Nm | 516 Nm | 745 Nm |
| Free Speed | 3000 RPM | 4000 RPM | 3500 RPM | 4000 RPM | 4000 RPM | 5500 RPM | 7000 RPM | 8000 RPM |
| Weight KG | 15 Kg | 11 Kg | 9.6 Kg | 7.2 Kg | 5.1 Kg | 3.4 Kg | 2.7 Kg | 2.6 Kg |
