Pipe Cutting Machine
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations Ranging from 3/4” to 56 inches O.D.on most wall thicknesses and material.

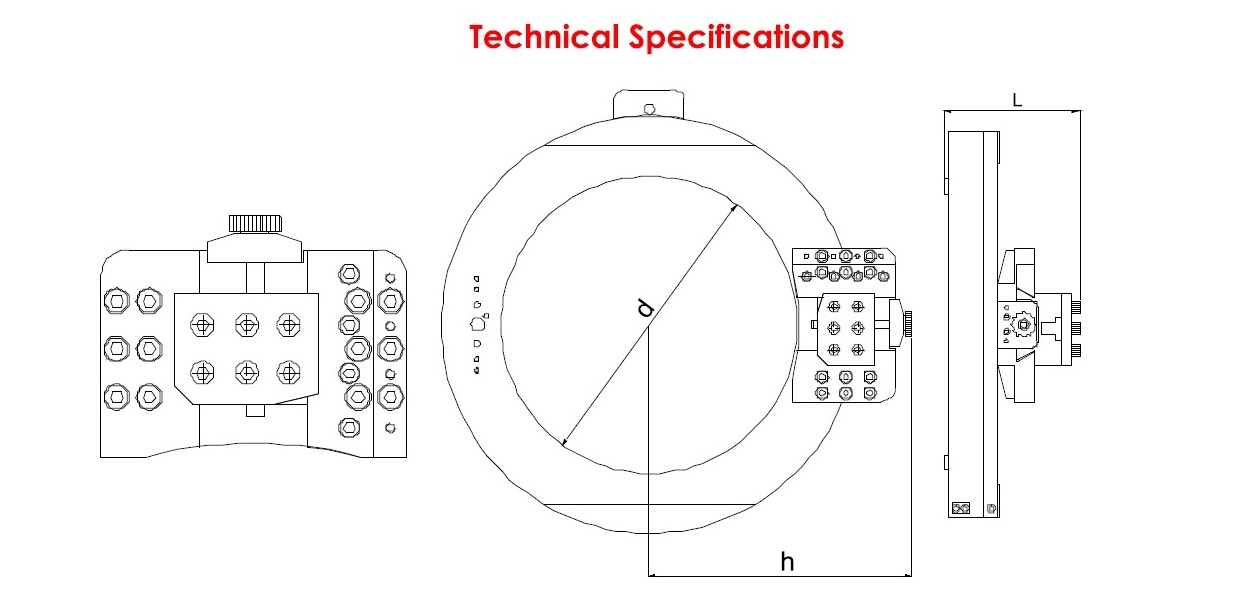

| Model | Working OD | Nut A/F | d | D | L | Weight | ||
|---|---|---|---|---|---|---|---|---|
| mm | inches | mm | inches | mm | mm | mm | mm | |
| PCM 0103H | 25-89 | 1-3 | 10-18 | 3/8" - 11/16" | 94 | 147 | 160 | 36 |
| PCM 0206H | 50-168 | 2-6 | 18-24 | 11/16" - 15/16" | 185 | 512 | 190 | 42 |
| PCM 0308H | 80-230 | 3-8 | 24-32 | 15/16" - 1.1/4" | 236 | 564 | 190 | 43 |
| PCM 0510H | 125-275 | 5-10 | 32-41 | 1.1/4" - 1.5/8" | 283 | 612 | 190 | 45 |
| PCM 0612H | 168-325 | 6-12 | 41-50 | 1.5/8" - 2" | 334 | 665 | 190 | 54 |
| PCM 0814H | 219-377 | 8-14 | 50-60 | 2" - 2.3/8" | 386 | 719 | 190 | 57 |
| PCM 1016H | 273-426 | 10-16 | 60-72 | 2.3/8" - 2.15/16" | 438 | 776 | 200 | 60 |
| PCM 1218H | 300-457 | 12-18 | 10-18 | 3/8" - 11/16" | 469 | 807 | 200 | 66 |
| PCM 1420H | 355-508 | 14-20 | 18-24 | 11/16" - 15/16" | 519 | 862 | 200 | 78 |
| PCM 1622H | 400-560 | 16-22 | 24-32 | 15/16" - 1.1/4" | 570 | 910 | 200 | 80 |
| PCM 1824H | 457-610 | 18-24 | 32-41 | 1.1/4" - 1.5/8" | 618 | 960 | 200 | 85 |
| PCM 2026H | 508-660 | 20-26 | 41-50 | 1.5/8" - 2" | 670 | 1020 | 200 | 96 |
| PCM 2228H | 550-715 | 22-28 | 50-60 | 2" - 2.3/8" | 719 | 1084 | 205 | 115 |
| PCM 2430H | 600-762 | 24-30 | 60-72 | 2.3/8" - 2.15/16" | 770 | 1134 | 205 | 118 |
| PCM 2632H | 660-813 | 26-32 | 10-18 | 3/8" - 11/16" | 830 | 1194 | 210 | 122 |
| PCM 3036H | 792-914 | 30-36 | 18-24 | 11/16" - 15/16" | 924 | 1296 | 215 | 145 |
| PCM 3642H | 914-1066 | 36-42 | 24-32 | 15/16" - 1.1/4" | 1077 | 1468 | 220 | 200 |
| PCM 4248H | 1066-1230 | 42-48 | 32-41 | 1.1/4" - 1.5/8" | 1248 | 1646 | 220 | 240 |
| Hydraulic Motor/Unit needs to be purchased separately | ||||||||
| Part number ending with E is for Electric drive and for Pneumatic drive it will be P | ||||||||
| Specification | Description |
|---|---|
| Drive Options | Hydraulic, Electric or Pneumatic |
| Hydraulic Requirement | 2-60 L per minute @12.5mpa |
| Electric Requirement | 220-240V, 1HP, 50Hz |
| Air Requirement | 1500l-3000L Per min @0.6Mpa |
| Feed Mode | Automatic Feeding |
