Hydraulic Jacks

IET offers an extensive range of Hydraulic Jacks that suits most of Industrial Application
It covers alloy steel jacks from 5 Ton to 1000 Tons of varuous stroke.
There are Flat Jacks, Super Flat, Compact and General purpose cylinders.
Range of Jacks suit most of applications that is which requires below objective Precision Lifting, Aligning, Pushing, Pulling and Load holding

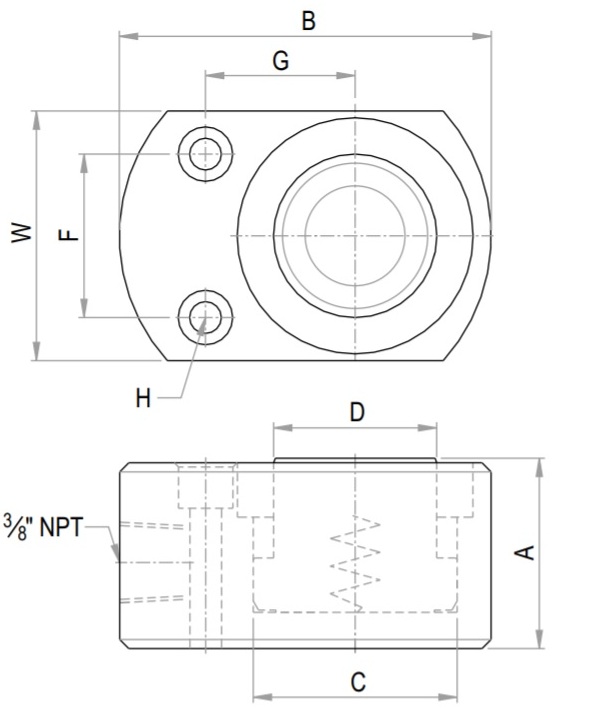

Hydraulic Jack Flat

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	mm	mm	Kg
HJF-5-8	5	8	35	60	0.6
HJF-10-12	10	12	45	80	1.3
HJF-20-12	20	12	55	100	3
HJF-30-12	30	12	60	115	4
HJF-50-16	50	16	65	140	6
HJF-75-16	75	16	80	175	12
HJF-100-16	100	16	85	190	15
HJF-150-16	150	16	100	230	27
HJF-200-16	200	16	115	265	41

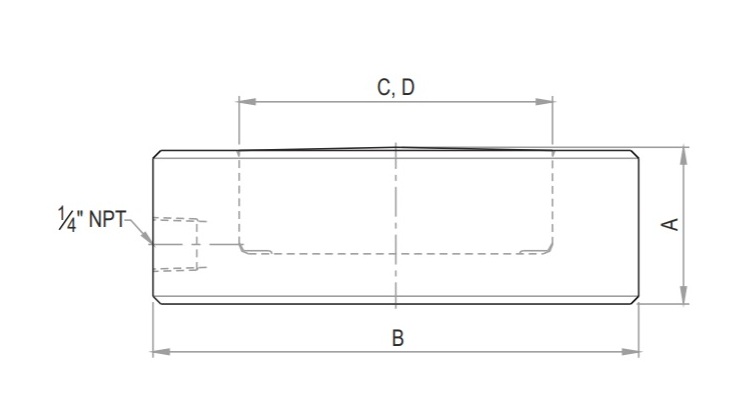

Hydraulic Jack Super Flat

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	mm	mm	Kg
HJSF-10-10	10	10	30	80	1.2
HJSF-20-10	20	10	35	100	2.2
HJSF-30-10	30	10	40	110	3
HJSF-50-10	50	10	50	140	6
HJSF-100-10	100	10	70	180	14
HJSF-150-10	150	10	75	220	22
HJSF-200-10	200	10	80	255	34
HJSF-300-10	300	10	90	310	55

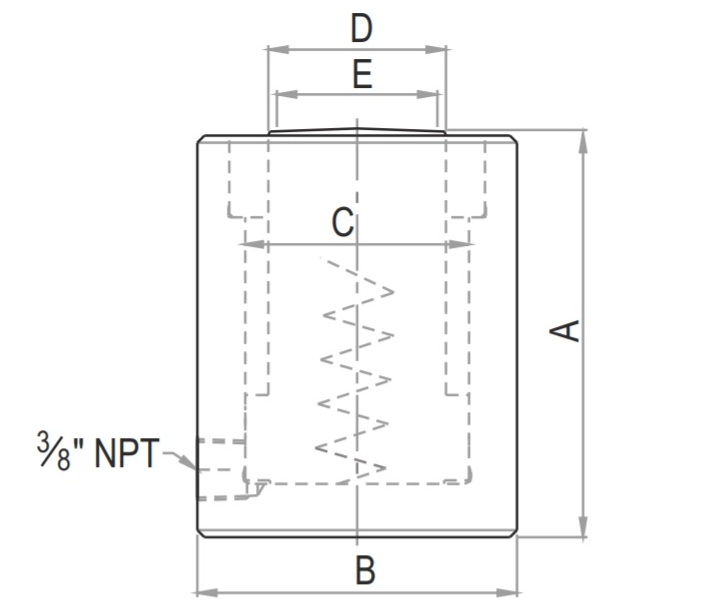

Hydraulic Jack Compact

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	mm	mm	Kg
HJC-10-30	10	30	90	70	2.3
HJC-20-50	20	50	115	90	5
HJC-30-50	30	50	120	100	6
HJC-50-60	50	60	125	130	11
HJC-75-60	75	60	145	155	19
HJC-100-60	100	60	150	180	24
HJC-150-60	150	60	165	220	43
HJC-200-60	200	60	200	255	66

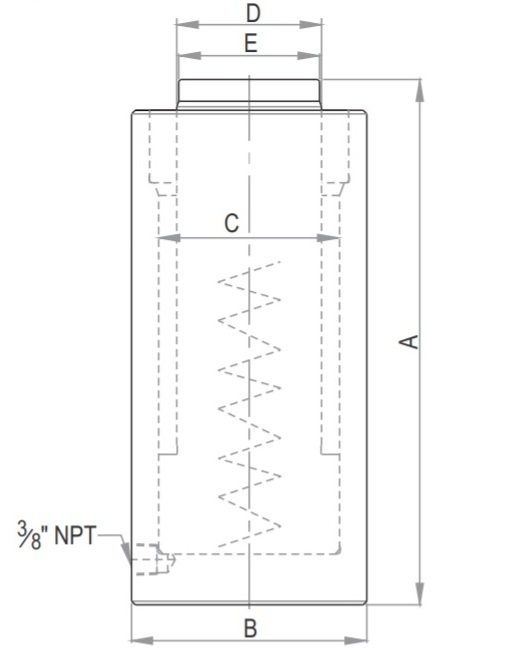

Hydraulic Jack General Purpose

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	A mm	B mm	Kg
HJG-5-50	5	50	135	45	1.5
HJG-5-100	5	100	185	45	2
HJG-5-150	5	150	235	45	2.5
HJG-10-50	10	50	135	60	2.5
HJG-10-100	10	100	185	60	3.2
HJG-10-150	10	150	235	60	4
HJG-10-200	10	200	285	60	5
HJG-15-50	15	50	140	70	4
HJG-15-100	15	100	190	70	5.2
HJG-15-150	15	150	240	70	6.3
HJG-15-200	15	200	290	70	7.4
HJG-20-50	20	50	145	80	5.3
HJG-20-100	20	100	195	80	7
HJG-20-150	20	150	245	80	8
HJG-20-200	20	200	295	80	10
HJG-25-50	25	50	155	90	7.2
HJG-25-100	25	100	205	90	9
HJG-25-150	25	150	255	90	11
HJG-25-200	25	200	305	90	13
HJG-30-50	30	50	160	100	9
HJG-30-100	30	100	210	100	12
HJG-30-150	30	150	260	100	14
HJG-30-200	30	200	310	100	16
HJG-50-50	50	50	175	130	17
HJG-50-100	50	100	225	130	21
HJG-50-150	50	150	275	130	25
HJG-50-200	50	200	325	130	30
HJG-75-50	75	50	180	155	24
HJG-75-100	75	100	230	155	30
HJG-75-150	75	150	280	155	35
HJG-75-200	75	200	330	155	41
HJG-100-50	100	50	185	180	33
HJG-100-100	100	100	235	180	41
HJG-100-150	100	150	285	180	48
HJG-100-200	100	200	335	180	56
HJG-150-50	150	50	200	220	54
HJG-150-100	150	100	250	220	66
HJG-150-150	150	150	300	220	77
HJG-200-50	200	50	215	255	76
HJG-200-100	200	100	265	255	91
HJG-200-150	200	150	315	255	107
HJG-250-100	250	100	270	280	114
HJG-250-150	250	150	320	280	133
HJG-250-200	250	200	370	280	202
HJG-300-100	300	100	285	310	149
HJG-300-150	300	150	335	310	173
HJG-300-200	300	200	385	310	197
HJG-400-100	400	100	315	350	209
HJG-400-150	400	150	365	350	239
HJG-400-200	400	200	415	350	269

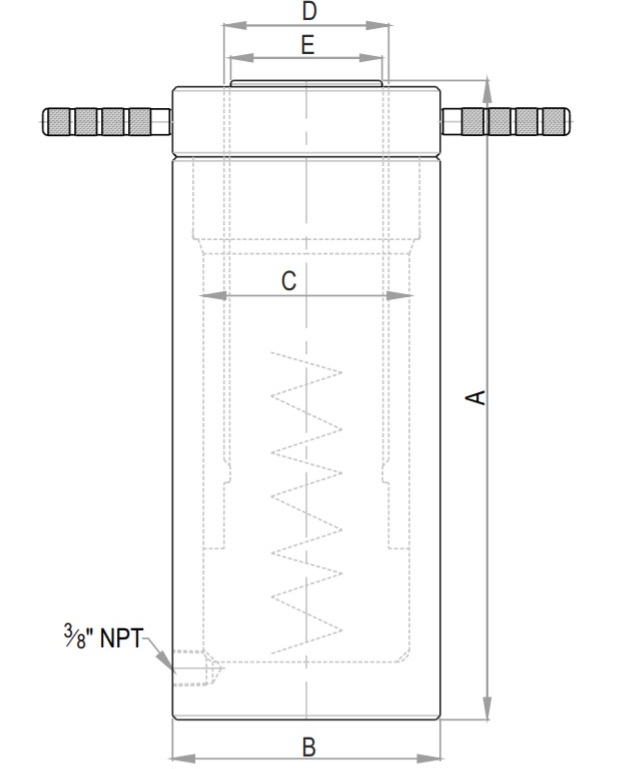

Hydraulic Jack General Purpose Threaded

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	A mm	B mm	Kg
HJGT-10-150	10	150	245	60	5
HJGT-15-150	15	150	250	70	7
HJGT-20-150	20	150	260	80	9
HJGT-25-150	25	150	270	90	12
HJGT-30-150	30	150	275	100	15
HJGT-50-150	50	150	290	130	27
HJGT-75-150	75	150	295	155	39
HJGT-100-150	100	150	305	180	54
HJGT-150-150	150	150	325	220	88
HJGT-200-150	200	150	340	255	122
HJGT-250-150	250	150	350	280	154
HJGT-300-150	300	150	370	310	202
HJGT-400-150	400	150	405	350	283

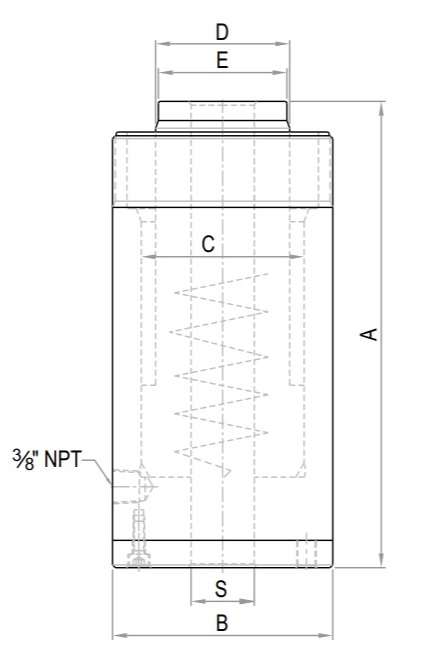

Hydraulic Jack Hollow

Model	Tonnage	Stroke	Closed Height	OD	Weight
Model	Ton	mm	A mm	B mm	Kg
HJH-10-50	10	50	165	75	5
HJH-10-75	10	75	190	75	5
HJH-10-100	10	100	215	75	6
HJH-20-50	20	50	170	105	11
HJH-20-100	20	100	220	105	14
HJH-20-150	20	150	270	105	16
HJH-30-50	30	50	195	115	13
HJH-30-75	30	75	220	115	15
HJH-30-100	30	100	245	115	16
HJH-30-150	30	150	295	115	19
HJH-50-75	50	75	230	150	25
HJH-50-100	50	100	255	150	27
HJH-60-75	60	75	245	165	32
HJH-60-100	60	100	270	165	35
HJH-60-150	60	150	320	165	41
HJH-100-75	100	75	270	215	58
HJH-100-100	100	100	295	215	62
