Impact Socket
IET Impact Sockets are designed to use with Hydraulic, Pneumatic or electric Tools.
They are made manufactures by slotting and broaching for good grip on nut avoid tools slip.
Walls of socket are thicker compared to other brands to resist shock and vibration.
All impact sockets are made from high strength alloy steel.
These are heat treated for the best strength and impact resistance.
Sockets are made from 1/4" to 3.1/2" Square Drive.

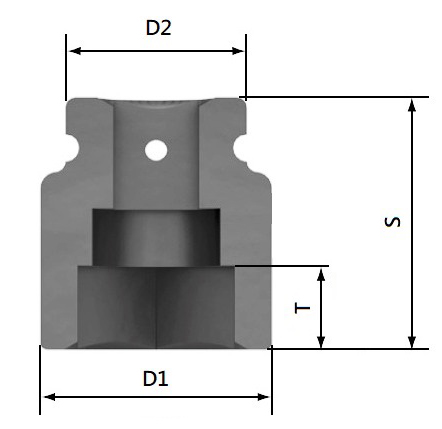

| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| SM-208S | 8 | SI-208S | 5/16” | 14 | 21 | 30 | 60 | 10 | 0.04 |
| SM-210S | 10 | SI-210S | 3/8” | 16 | 21 | 30 | 60 | 10 | 0.04 |
| SM-211S | 11 | SI-211S | 7/16” | 18 | 21 | 30 | 60 | 12 | 0.04 |
| SM-212S | 12 | - | - | 19 | 21 | 30 | 60 | 12 | 0.04 |
| SM-213S | 13 | SI-213S | 1/2” | 20 | 21 | 30 | 60 | 12 | 0.05 |
| SM-214S | 14 | SI-214S | 9/16” | 22 | 22 | 30 | 60 | 13 | 0.06 |
| SM-215S | 15 | - | - | 23 | 22 | 32 | 60 | 15 | 0.07 |
| SM-216S | 16 | SI-216S | 5/8” | 25 | 22 | 32 | 60 | 15 | 0.08 |
| SM-217S | 17 | SI-217S | 11/16” | 26 | 25 | 32 | 60 | 15 | 0.09 |
| SM-218S | 18 | - | - | 27 | 25 | 32 | 60 | 16 | 0.09 |
| SM-219S | 19 | SI-219S | 3/4” | 28 | 25 | 32 | 60 | 16 | 0.10 |
| SM-220S | 20 | - | - | 29 | 25 | 32 | 60 | 16 | 0.11 |
| SM-221S | 21 | SI-221S | 13/16” | 30 | 25 | 34 | 60 | 18 | 0.12 |
| SM-222S | 22 | SI-222S | 7/8” | 31 | 25 | 34 | 60 | 18 | 0.13 |
| SM-222S: | Socket Metric | 2 = 3/8" Drive | 22 = A/F | S = Standard Length | |||||
| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| SM-308S | 8 | SI-308S | 5/16” | 16 | 26 | 38 | 80 | 10 | 0.07 |
| SM-310S | 10 | SI-310S | 3/8” | 17 | 26 | 38 | 80 | 10 | 0.07 |
| SM-311S | 11 | SI-311S | 7/16” | 19 | 26 | 38 | 80 | 12 | 0.08 |
| SM-312S | 12 | - | - | 20 | 26 | 38 | 80 | 12 | 0.08 |
| SM-313S | 13 | SI-313S | 1/2” | 22 | 26 | 38 | 80 | 12 | 0.08 |
| SM-314S | 14 | SI-314S | 9/16” | 23 | 26 | 38 | 80 | 13 | 0.08 |
| SM-315S | 15 | - | - | 24 | 27 | 38 | 80 | 14 | 0.11 |
| SM-316S | 16 | SI-316S | 5/8” | 26 | 27 | 38 | 80 | 14 | 0.11 |
| SM-317S | 17 | SI-317S | 11/16” | 27 | 27 | 38 | 80 | 14 | 0.12 |
| SM-318S | 18 | - | - | 29 | 30 | 40 | 80 | 14 | 0.13 |
| SM-319S | 19 | SI-319S | 3/4” | 30 | 30 | 40 | 80 | 16 | 0.16 |
| SM-320S | 20 | - | - | 32 | 30 | 40 | 80 | 16 | 0.18 |
| SM-321S | 21 | SI-321S | 13/16” | 33 | 30 | 40 | 80 | 18 | 0.18 |
| SM-322S | 22 | SI-322S | 7/8” | 35 | 30 | 40 | 80 | 18 | 0.19 |
| SM-323S | 23 | - | - | 36 | 30 | 42 | 80 | 21 | 0.19 |
| SM-324S | 24 | SI-324S | 15/16” | 38 | 36 | 42 | 80 | 21 | 0.24 |
| - | - | SI-325S | 1” | 41 | 36 | 42 | 80 | 21 | 0.26 |
| SM-327S | 27 | SI-327S | 1.1/16” | 42 | 36 | 45 | 80 | 23 | 0.35 |
| - | - | SI-328S | 1.1/8” | 46 | 36 | 45 | 80 | 23 | 0.30 |
| SM-330S | 30 | SI-330S | 1.3/16” | 46 | 36 | 45 | 80 | 24 | 0.30 |
| SM-332S | 32 | SI-332S | 1.1/4” | 48 | 36 | 46 | 80 | 26 | 0.30 |
| - | - | SI-334S | 1.3/8” | 55 | 36 | 51 | 80 | 28 | 0.50 |
| - | - | SI-338S | 1.1/2” | 56 | 36 | 53 | 80 | 30 | 0.60 |
| SM-332S: | Socket Metric | 3 = 1/2" Drive | 32 = A/F | S = Standard Length | |||||
| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| - | - | SI-414S | 9/16” | 28 | 44 | 48 | 90 | 13 | 0.40 |
| - | - | SI-416S | 5/8” | 30 | 44 | 48 | 90 | 14 | 0.40 |
| SM-417S | 17 | SI-417S | 11/16” | 32 | 44 | 48 | 90 | 14 | 0.40 |
| SM-419S | 19 | SI-419S | 3/4” | 34 | 44 | 48 | 90 | 16 | 0.40 |
| - | - | SI-421S | 13/16” | 36 | 44 | 50 | 90 | 16 | 0.40 |
| SM-422S | 22 | SI-422S | 7/8” | 38 | 44 | 50 | 90 | 18 | 0.40 |
| SM-424S | 24 | SI-424S | 15/16” | 42 | 44 | 50 | 90 | 21 | 0.42 |
| - | - | SI-425S | 1” | 43 | 44 | 50 | 90 | 21 | 0.47 |
| SM-427S | 27 | SI-427S | 1.1/16” | 44 | 44 | 50 | 90 | 23 | 0.47 |
| - | - | SI-428S | 1.1/8” | 48 | 44 | 50 | 90 | 23 | 0.40 |
| SM-430S | 30 | SI-430S | 1.3/16” | 48 | 44 | 50 | 90 | 24 | 0.53 |
| SM-432S | 32 | SI-432S | 1.1/4” | 52 | 44 | 55 | 90 | 26 | 0.54 |
| - | - | SI-433S | 1.5/16” | 53 | 44 | 55 | 90 | 26 | 0.60 |
| - | - | SI-434S | 1.3/8” | 55 | 44 | 55 | 90 | 28 | 0.60 |
| SM-436S | 36 | SI-436S | 1.7/16” | 55 | 44 | 60 | 90 | 28 | 0.78 |
| SM-438S | 38 | SI-438S | 1.1/2” | 59 | 44 | 60 | 90 | 30 | 0.90 |
| SM-441S | 41 | SI-441S | 1.5/8” | 66 | 44 | 66 | 90 | 36 | 0.97 |
| - | - | SI-443S | 1.11/16” | 68 | 44 | 66 | 100 | 36 | 1.08 |
| TM-446S | 46 | SI-446S | 1.13/16” | 72 | 54 | 66 | 100 | 36 | 1.14 |
| - | - | SI-448S | 1.7/8” | 74 | 60 | 68 | 100 | 36 | 1.16 |
| - | - | SI-449S | 1.15/16” | 76 | 60 | 70 | 100 | 39 | 1.16 |
| SM-450S | 50 | SI-450S | 2” | 76 | 60 | 70 | 100 | 39 | 1.16 |
| - | - | SI-452S | 2.1/16” | 78 | 60 | 74 | 110 | 41 | 1.44 |
| SM-455S | 55 | SI-455S | 2.3/16 | 84 | 60 | 74 | 110 | 41 | 1.68 |
| - | - | SI-457S | 2.1/4” | 84 | 70 | 74 | 120 | 41 | 1.68 |
| SM-460S | 60 | SI-460S | 2.3/8” | 88 | 70 | 78 | 120 | 45 | 2.04 |
| SI-460S: | Socket Imperial | 4 = 3/4" Drive | 60 = 2.3/8" A/F | S = Standard Length | |||||
| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| SM-519S | 19 | SI-519S | 3/4” | 38 | 54 | 63 | 110 | 16 | 0.56 |
| - | - | SI-521S | 13/16” | 38 | 54 | 63 | 110 | 18 | 0.57 |
| SM-522S | 22 | SI-522S | 7/8” | 40 | 54 | 63 | 110 | 18 | 0.58 |
| SM-524S | 24 | SI-524S | 15/16” | 42 | 54 | 63 | 110 | 21 | 0.61 |
| - | - | SI-525S | 1” | 44 | 54 | 63 | 110 | 21 | 0.62 |
| SM-527S | 27 | SI-527S | 1.1/16” | 46 | 54 | 63 | 110 | 23 | 0.63 |
| - | - | SI-528S | 1.1/8” | 49 | 54 | 63 | 110 | 23 | 0.65 |
| SM-530S | 30 | SI-530S | 1.3/16” | 50 | 54 | 63 | 110 | 24 | 0.73 |
| SM-532S | 32 | SI-532S | 1.1/4” | 52 | 54 | 63 | 110 | 26 | 0.75 |
| - | - | SI-533S | 1.5/16” | 54 | 54 | 63 | 110 | 26 | 0.83 |
| - | - | SI-534S | 1.3/8” | 56 | 54 | 66 | 110 | 28 | 0.83 |
| SM-536S | 36 | SI-536S | 1.7/16” | 58 | 54 | 66 | 110 | 28 | 0.86 |
| SM-538S | 38 | SI-538S | 1.1/2” | 62 | 54 | 66 | 110 | 30 | 0.94 |
| - | - | SI-541S | 1.9/16” | 65 | 54 | 68 | 110 | 32 | 0.94 |
| SM-541S | 41 | SI-541S | 1.5/8” | 67 | 54 | 68 | 110 | 36 | 1.0 |
| - | - | SI-543S | 1.11/16” | 67 | 54 | 68 | 110 | 36 | 1.12 |
| - | - | SI-544S | 1.3/4” | 72 | 54 | 74 | 110 | 36 | 1.12 |
| TM-546S | 46 | SI-546S | 1.13/16” | 74 | 54 | 74 | 110 | 36 | 1.12 |
| - | - | SI-548S | 1.7/8” | 74 | 54 | 74 | 110 | 36 | 1.4 |
| - | - | SI-549S | 1.15/16” | 75 | 70 | 76 | 110 | 39 | 1.4 |
| SM-550S | 50 | SI-550S | 2” | 77 | 70 | 76 | 110 | 39 | 1.7 |
| - | - | SI-552S | 2.1/16” | 77 | 70 | 76 | 120 | 41 | 1.7 |
| SM-555S | 55 | SI-555S | 2.3/16” | 86 | 70 | 78 | 120 | 41 | 1.8 |
| - | - | SI-557S | 2.1/4” | 86 | 70 | 78 | 120 | 41 | 1.7 |
| SM-560S | 60 | SI-560S | 2.3/8” | 90 | 70 | 81 | 120 | 45 | 2.4 |
| - | - | SI-563S | 2.7/16” | 90 | 70 | 81 | 120 | 45 | 2.4 |
| SM-565S | 65 | SI-565S | 2.9/16” | 98 | 80 | 85 | 120 | 46 | 2.8 |
| - | - | SI-567S | 2.5/8” | 98 | 80 | 85 | 120 | 46 | 2.8 |
| SM-570S | 70 | SI-570S | 2.3/4” | 104 | 80 | 90 | 130 | 50 | 3.5 |
| - | - | SI-573S | 2.13/16” | 104 | 80 | 90 | 130 | 50 | 3.30 |
| SM-575S | 75 | SI-575S | 2.15/16” | 112 | 80 | 94 | 130 | 57 | 3.5 |
| - | - | SI-576S | 3” | 112 | 80 | 94 | 130 | 57 | 3.30 |
| SM-580S | 80 | SI-580S | 3.1/8” | 118 | 80 | 100 | 140 | 62 | 4.0 |
| SM-585S | 85 | SI-585S | 3.3/8” | 125 | 80 | 104 | 140 | 62 | 4.24 |
| SI-585S: | Socket Imperial | 5 = 1" Drive | 85 = 3.3/8" A/F | S = Standard Length | |||||
| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| - | - | SI-627S | 1.1/16” | 54 | 86 | 80 | 130 | 23 | 2.10 |
| - | - | SI-628S | 1.1/8” | 58 | 86 | 80 | 130 | 23 | 2.10 |
| - | - | SI-634S | 1.3/8” | 64 | 86 | 80 | 130 | 28 | 2.10 |
| SM-636S | 36 | SI-636S | 1.7/16” | 64 | 86 | 80 | 130 | 28 | 2.20 |
| SM-638S | 38 | SI-638S | 1.1/2” | 69 | 86 | 80 | 130 | 30 | 2.31 |
| - | - | SI-639S | 1.9/16” | 69 | 86 | 80 | 130 | 32 | 2.31 |
| SM-641S | 41 | SI-641S | 1.5/8” | 69 | 86 | 83 | 130 | 36 | 2.42 |
| - | - | SI-643S | 1.11/16” | 69 | 86 | 83 | 130 | 36 | 2.42 |
| - | - | SI-644S | 1.3/4” | 69 | 86 | 83 | 130 | 36 | 2.64 |
| SM-646S | 46 | SI-646S | 1.13/16” | 76 | 86 | 86 | 130 | 36 | 2.64 |
| - | - | SI-648S | 1.7/8” | 76 | 86 | 86 | 130 | 36 | 2.70 |
| SM-650S | 50 | SI-650S | 2” | 81 | 86 | 90 | 130 | 39 | 2.5 |
| - | - | SI-652S | 2.1/16” | 81 | 86 | 90 | 140 | 41 | 2.5 |
| SM-655S | 55 | SI-655S | 2.3/16” | 88 | 86 | 95 | 140 | 41 | 2.75 |
| - | - | SI-657S | 2.1/4” | 88 | 86 | 95 | 140 | 41 | 3.0 |
| SM-660S | 60 | SI-660S | 2.3/8” | 96 | 86 | 98 | 140 | 45 | 3.0 |
| - | - | SI-663S | 2.7/16” | 96 | 86 | 98 | 140 | 45 | 3.0 |
| SM-665S | 65 | SI-665S | 2.9/16” | 102 | 86 | 102 | 140 | 46 | 3.6 |
| - | - | SI-667S | 2.5/8” | 102 | 86 | 102 | 140 | 46 | 3.6 |
| SM-670S | 70 | SI-670S | 2.3/4” | 108 | 86 | 102 | 150 | 50 | 4.0 |
| - | - | SI-673S | 2.13/16” | 108 | 86 | 102 | 150 | 50 | 4.5 |
| SM-675S | 75 | SI-675S | 2.15/16” | 116 | 86 | 108 | 150 | 57 | 5.0 |
| - | - | SI-676S | 3” | 116 | 86 | 108 | 150 | 57 | 5.0 |
| SM-680S | 80 | SI-680S | 3.1/8” | 120 | 86 | 110 | 150 | 62 | 5.0 |
| SM-685S | 85 | SI-685S | 3.3/8” | 130 | 86 | 115 | 170 | 62 | 6.5 |
| SM-690S | 90 | SI-690S | 3.1/2” | 135 | 125 | 118 | 170 | 65 | 7.5 |
| SM-695S | 95 | SI-695S | 3.3/4” | 140 | 125 | 123 | 170 | 70 | 8.4 |
| SM-6100S | 100 | SI-6100S | 3.7/8” | 148 | 125 | 128 | 190 | 75 | 10.0 |
| SM-6105S | 105 | SI-6105S | 4.1/8” | 155 | 125 | 133 | 190 | 80 | 11.0 |
| - | - | SI-6108S | 4.1/4” | 155 | 125 | 133 | 190 | 80 | 10.1 |
| SM-6110S | 110 | - | - | 161 | 125 | 138 | 200 | 85 | 12.0 |
| SM-6115S | 115 | SI-6115S | 4.1/2” | 161 | 125 | 143 | 200 | 94 | 12.5 |
| SM-6120S | 120 | SI-6120S | 4.5/8”” | 175 | 150 | 149 | 200 | 94 | 14.6 |
| SM-6120S: | Socket Metric | 6 = 1.1/2" Drive | 120 = A/F | S = Standard Length | |||||
| Metric Size | Inches Size | Dimensions (mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. | A/F | Part No. | A/F | D1 | D2 | S | L | T | Kg |
| SM-760S | 60 | SI-760S | 2.3/8” | 120 | 125 | 120 | 190 | 45 | 7.30 |
| SM-765S | 65 | SI-765S | 2.9/16” | 125 | 125 | 120 | 190 | 46 | 7.54 |
| SM-770S | 70 | SI-770S | 2.3/4” | 130 | 125 | 120 | 190 | 50 | 8.0 |
| SM-775S | 75 | SI-775S | 2.15/16” | 130 | 125 | 130 | 190 | 57 | 8.4 |
| SI-776S | 3” | 135 | 125 | 140 | 190 | 57 | 8.4 | ||
| SM-780S | 80 | SI-780S | 3.1/8” | 135 | 125 | 140 | 190 | 62 | 9.4 |
| SM-785S | 85 | SI-785S | 3.3/8” | 140 | 125 | 140 | 190 | 62 | 9.8 |
| SM-790S | 90 | SI-790S | 3.1/2” | 145 | 125 | 140 | 190 | 65 | 10.1 |
| SI-792S | 3.5/8" | 145 | 125 | 140 | 190 | 65 | 10.0 | ||
| SM-795S | 95 | SI-795S | 3.3/4” | 155 | 125 | 150 | 190 | 70 | 11.2 |
| - | - | SI-798S | 3.7/8” | 155 | 125 | 150 | 190 | 70 | 11.8 |
| SM-7100S | 100 | SI-7102S | 4” | 160 | 125 | 150 | 200 | 75 | 12.5 |
| SM-7105S | 105 | SI-7105S | 4.1/8” | 165 | 125 | 160 | 200 | 80 | 14.0 |
| SM-7110S | 110 | SI-7110S | 4.3/8” | 174 | 150 | 160 | 210 | 85 | 16.1 |
| SM-7115S | 115 | SI-7115S | 4.1/2” | 180 | 150 | 170 | 210 | 90 | 17.0 |
| - | - | SI-7117S | 4.5/8” | 180 | 150 | 175 | 220 | 94 | 18.9 |
| SM-7120S | 120 | SI-7120S | 4.3/4” | 185 | 150 | 175 | 220 | 94 | 18.5 |
| - | - | SI-7124S | 4.7/8” | 185 | 150 | 175 | 220 | 94 | 18.3 |
| - | - | SI-7127S | 5” | 195 | 150 | 175 | 220 | 98 | 21.5 |
| SM-7130S | 130 | - | - | 195 | 150 | 175 | 220 | 98 | 21.5 |
| SM-7135S | 135 | SI-7135S | 5.3/8” | 205 | 150 | 180 | 220 | 102 | 23.2 |
| SM-7145S | 145 | SI-7145S | 5.3/4” | 220 | 150 | 180 | 230 | 105 | 25.5 |
| SM-7150S | 150 | - | - | 230 | 180 | 190 | 250 | 110 | 26.8 |
| SM-7155S | 155 | SI-7155S | 6.1/8” | 230 | 180 | 190 | 250 | 110 | 26.8 |
| SM-7160S | 160 | - | - | 240 | 180 | 190 | - | 110 | 28.5 |
| SM-7165S | 165 | SI-7165S | 6.1/2” | 240 | 180 | 200 | - | 120 | 32.3 |
| SM-7175S | 175 | SI-7175S | 6.7/8” | 255 | 180 | 200 | - | 120 | 36.2 |
| SM-7185S | 185 | SI-7185S | 7.1/4” | 270 | 180 | 210 | - | 130 | 39.5 |
| SM-7195S | 195 | SI-7195S | 7.5/8” | 275 | 180 | 210 | - | 130 | 40.1 |
| SM-7200S | 200 | SI-7200S | 8” | 290 | 180 | 225 | - | 140 | 43.0 |
| SM-7200S: | Socket Metric | 7 = 2.1/2" Drive | 200 = A/F | S = Standard Length | |||||
