Hydraulic Wrench Hex Type
IET HTW-S series is the professional hydraulic torque wrench that is vigorously extends in international market.
Its raw material is aluminum-titanium alloy which makes the wrench light and high intenes.
IET-S series has 9 models with the range from 165 N.m to 69000 Nm.covering most of bolts size.
It is recommended to use HTW to 80% of efficiency at time of torque calculation.
360°×360°degree swivel allow the wrench free to operate with no space limitation.
Accuracy of tool is +/- 4%
| Model No | Unit | HTW-2H | HTW-6H | HTW-11H | HTW-18H | HTW-25H | HTW-45H |
|---|---|---|---|---|---|---|---|
| Torque Range | Nm | 230-2400 | 580-6400 | 740-11700 | 1850-18500 | 2300-23005 | 4100-44500 |
| Ft Lb | 170-1930 | 400-4800 | 770-8700 | 1370-13700 | 1700-17005 | 3030-33030 | |
| Nut on Side | mm | 19-60 | 34-80 | 41-105 | 50-117 | 95-135 | 110-175 |
| inches | 3/4 - 2.3/8 | 1.5/16 - 3.1/8 | 1.5/8 - 4.1/8 | 2 - 4.1/2 | 3.3/4 - 4.1/2 | 4.1/4 - 6.7/8 | |

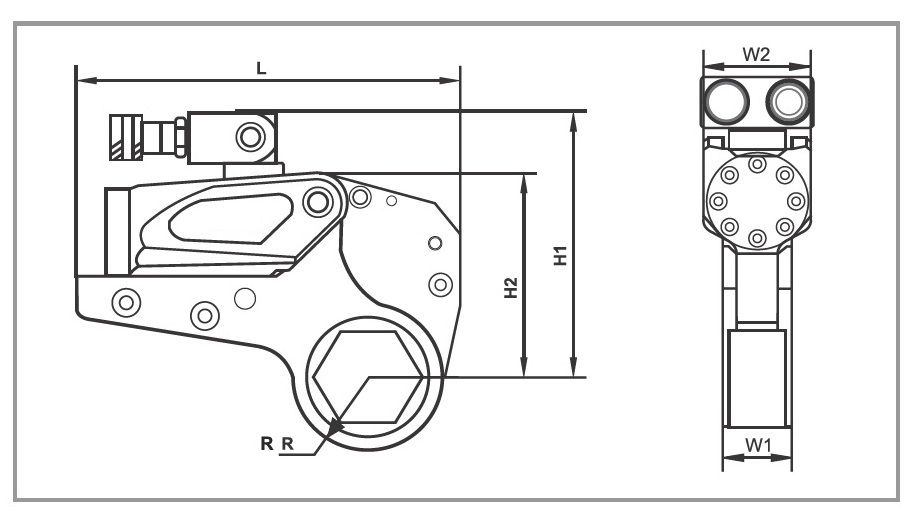

| Overall Length (L) | mm | 196 | 246 | 300 | 360 | 400 | 440 |
| Height (H1) | mm | 128 | 187 | 216 | 240 | 246 | 315 |
| Height (H2) | mm | 105 | 146 | 178 | 205 | 225 | 285 |
| Width (W1) | mm | 32 | 42 | 53 | 64 | 70 | 85 |
| Width (W2) | mm | 51 | 66 | 83 | 99 | 110 | 130 |
| Nose Radius (R) | mm | 27-46 | 32-60 | 46-78 | 60-87 | 78-99 | 78-128 |
| Drive Weight | Kg | 1 | 2 | 3.3 | 5.5 | 7 | 12 |
| Ratchet Weight | Kg | 1.7 | 4.6 | 8.4 | 12 | 17 | 30 |
