Hydraulic Wrench Square Drive
IET HTW-S series is the professional hydraulic torque wrench that is vigorously extends in international market.
Its raw material is aluminum-titanium alloy which makes the wrench light and high intenes.
Compared to square drive hydraulic torque wrench, Hex series work directly on the nuts and its body suits well in the narrow space.
IET-S series has 9 models with the range from 230 N.m to 44,000 Nm.covering most of bolts size.
360°×360°degree swivel allow the wrench free to operate with no space limitation
| Model No | Unit | HTW-2S | HTW-5S | HTW-8S | HTW-10S | HTW-15S | HTW-20S | HTW-25S | HTW-35S | HTW-50S | HTW-70S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Square Drive | Inch | 3/4" | 1" | 1.1/2" | 1.1/2" | 1.1/2" | 2.1/2" | 2.1/2" | 2.1/2" | 2.1/2" | 2.1/2" |
| Torque Range | Nm | 165-1750 | 430-4330 | 740-7400 | 1010-10400 | 1500-15000 | 1940-19400 | 2500-26400 | 3300-34500 | 4740-47400 | 6925-69200 |
| Ft Lb | 120-1290 | 315-3190 | 540-5450 | 740-7600 | 1110-11120 | 1430-14300 | 1840-19500 | 2440-25500 | 3490-34950 | 5100-51000 | |

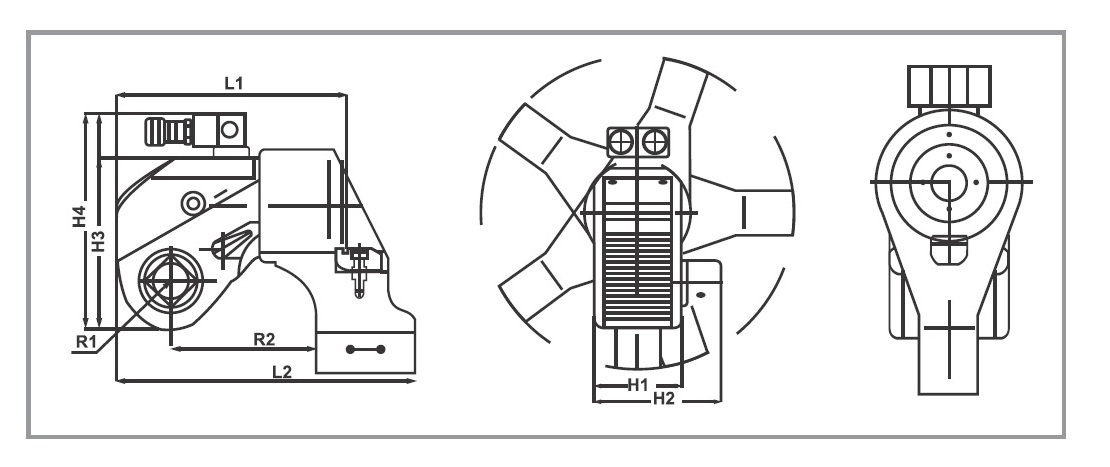

| Body Length (L1) | mm | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 | 376 |
| Overall Length (L2) | mm | 182 | 250 | 286 | 326 | 336 | 391 | 433 | 464 | 494 | 528 |
| Tool Width (H1) | mm | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 | 162 |
| Overall Width (H2) | mm | 77 | 98 | 125 | 134 | 144 | 164 | 187 | 206 | 217 | 226 |
| Tool Height (H3) | mm | 96 | 127 | 149 | 172 | 181 | 206 | 221 | 258 | 279 | 291 |
| Overall Height (H4) | mm | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 293 | 315 | 326 |
| Tool Radius (R1) | mm | 25.8 | 35 | 40 | 47 | 51 | 57 | 60 | 71 | 77 | 79 |
| Reachion (R2) | mm | 102 | 140 | 160 | 184 | 192 | 223 | 248 | 256 | 271 | 295 |
| Weight | Kg | 2 | 5 | 7 | 11 | 13 | 20 | 25 | 34 | 45 | 52 |
