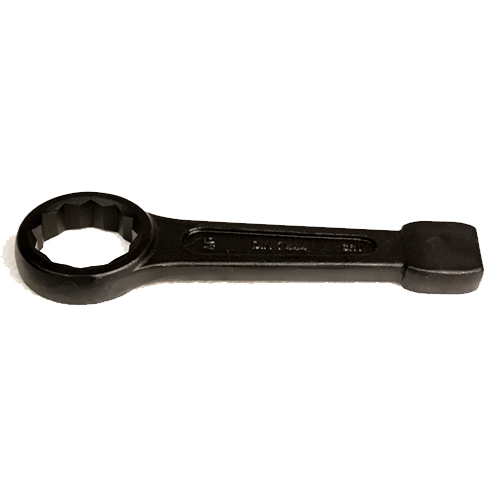

Slugging Wrench Ring Type

IET Slugging / Striking Wrenches are designed for use with hammers where impact or shock loading is required for loosening of frozen and rusty nuts and bolts.
Slugging wrenches are duly forged from superior grade chrome vanadium steel.
The blanks are duly machined with the wrench openings broached to tolerance as per federal specifications.
These slugging wrenches undergo a heat treatment process including stress relieving before undergoing short blasting and surface finish operations.

Straight Handle Ring Type Slugging Wrench

METRIC SIZE		IMPERIAL SIZE		SPECIFICATIONS
Part No.	Size	Part No.	Size	Head Dia.(Mm)	Head Thk.(mm)	Length (mm)	Weight(Kg)
SWRM-19	19	SWRI-19	3/4”	54	18	175	0.36
SWRM-22	22	SWRI-22	7/8”	54	18	175	0.53
SWRM-24	24	SWRI-24	15/16”	54	18	175	0.53
SWRM-27	27	SWRI-27	1.1/16”	54	18	175	0.53
SWRM-29	29	SWRI-29	1.1/8”	54	18	175	0.53
SWRM-30	30	SWRI-30	1.3/16”	68	22	210	0.53
SWRM-32	32	SWRI-32	1.1/4”	68	22	210	0.53
SWRM-33	33	SWRI-33	1.5/16”	68	22	210	0.53
SWRM-35	35	SWRI-35	1.3/8”	68	22	210	0.53
SWRM-36	36	SWRI-36	1.7/16”	68	22	210	0.98
SWRM-38	38	SWRI-38	1.1/2”	68	22	210	0.98
SWRM-41	41	SWRI-41	1.5/8”	80	28	245	0.98
SWRM-43	43	SWRI-43	1.11/16”	80	28	245	1.34
SWRM-44	44	SWRI-44	1.3/4”	80	28	245	1.34
SWRM-46	46	SWRI-46	1.13/16”	80	28	245	1.25
SWRM-47	47	SWRI-47	1.7/8”	80	28	245	1.25
SWRM-50	50	SWRI-50	2”	80	28	245	1.34
SWRM-52	52	SWRI-52	2.1/16”	102	35	285	1.34
SWRM-55	55	SWRI-55	2.3/16	102	35	285	2.14
SWRM-57	57	SWRI-57	2.1/4”	102	35	285	2.05
SWRM-60	60	SWRI-60	2.3/8”	102	35	285	1.96
SWRM-62	62	SWRI-62	2.7/16”	102	35	285	2.23
SWRM-63	63	SWRI-63	2.1/2”	102	35	285	2.41
SWRM-65	65	SWRI-65	2.9/16”	102	35	285	2.67
SWRM-67	67	SWRI-67	2.5/8”	122	40	322	2.67
SWRM-70	70	SWRI-70	2.3/4”	122	40	322	3.12
SWRM-71	71	SWRI-71	2.13/16”	122	40	322	3.12
SWRM-75	75	SWRI-75	2.15/16”	122	40	322	3.12
SWRM-76	76	SWRI-76	3”	122	40	322	3.12
SWRM-80	80	SWRI-80	3.1/8”	122	40	322	4.46
SWRM-85	85	SWRI-85	3.1/8”	130	40	340	4.01
SWRM-90	90	SWRI-90	3.1/2”	136	45	350	4.28
SWRM-95	95	SWRI-95	3.3/4”	140	45	375	4.01
-	-	-	3.7/8”	158	50	415	4.46
SWRM-100	100	SWRI-100	4”	158	50	415	7.13
SWRM-105	105	SWRI-105	4.1/8”	164	50	450	9.80
SWRM-110	110	SWRI-110	4.1/4”	170	55	450	10.69
SWRM-115	115	SWRI-115	4.1/2”	175	55	465	9.80
SWRM-120	120	SWRI-120	4.3/4”	190	60	490	14.26
SWRM-125	125	SWRI-125	4.7/8”	200	60	510	15.15
SWRM-130	130	SWRI-130	5”	210	65	515	15.15
SWRM-135	135	SWRI-135	5.3/8”	222	65	540	15.15
SWRM-140	140	SWRI-140	5.1/2”	230	70	550	16.93
SWRM-145	145	SWRI-145	5.3/4”	230	70	565	16.93
SWRM-150	150	SWRI-150	6”	230	70	565	16.93
SWRM-155	155	SWRI-155	6.1/8”	230	70	565	16.93
SWRM-160	160	SWRI-160	6.1/4”	270	70	635	26.73
SWRM-165	165	SWRI-165	6.1/2”	270	70	635	26.73
SWRM-170	170	SWRI-170	6.3/4”	270	70	635	26.73
SWRM-175	175	SWRI-175	6.7/8”	270	70	635	25.84
SWRM-180	180	SWRI-180	7.1/8”	270	70	635	25.84
SWRM-185	185	SWRI-185	7.1/4”	295	75	680	32.08
SWRM-190	190	SWRI-190	7.1/2”	295	75	680	32.08
SWRM-195	195	SWRI-195	7.5/8”	295	75	680	31.19
SWRM-200	200	SWRI-200	7.7/8”	295	75	680	31.19
SWRM-205	205	SWRI-205	8.1/8”	295	75	680	31.19
SWRM-210	210	SWRI-210	8.1/4”	325	80	725	44.55
SWRM-215	215	SWRI-215	8.1/2”	325	80	725	44.55
SWRM-220	220	SWRI-220	8.5/8”	325	80	725	44.55
SWRM-225	225	SWRI-225	8.7/8”	325	80	725	44.55
SWRM-230	230	SWRI-230	9.1/8”	325	80	725	44.55
SWRM-230 :		Slugging Wrench		Ring Metric -		230 MM
